Quartz Fiber Yarns

Quartz Fiber Yarns

Product Features:

The Quartz Fiber is made of high purity silica and natural quartz crystals.The diameter is generally a few microns to tens of microns.

High strength retention rate at high temperature, dimensional stability, thermal shock resistance, chemical stability, light transmission and electrical insulation.

Inquire Now

Collection

Product Details

Product Features：

* Long-term use 1050°C, softening point 1700C;

* Low thermal conductivity, high strength, high elastic modulus;

* It has heat resistance, corrosion resistance and softness.

* Used in wave-permeable materials, ablative/structural materials,
* Electrica/thermal insulation materials, insulating materials, etc

* In some cases, it replaces high-silica glass fiber and alumina fiber, S glass fiber, E glass fiber, carbon fiber

◉ Quartz fiber in the military, national defense, aviation, aerospace industry has an important use, can be used to manufacture such as rocket vents, aerospace thermal protection devices.

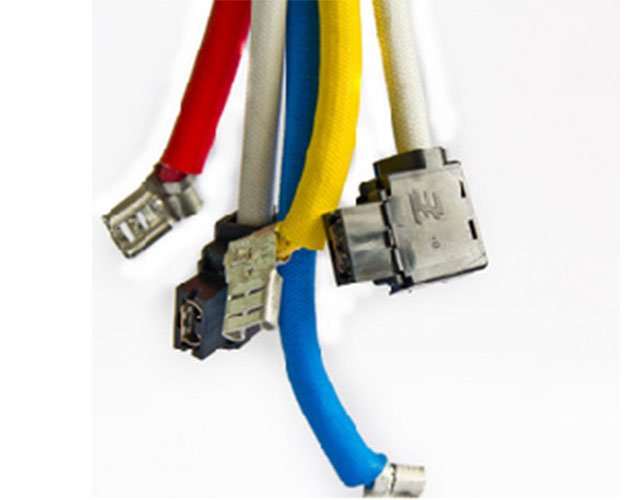

◉ Civil in optical fiber electric/automotive heat insulation, fire proof protection clothing and other insulation materials.

Product Parameters

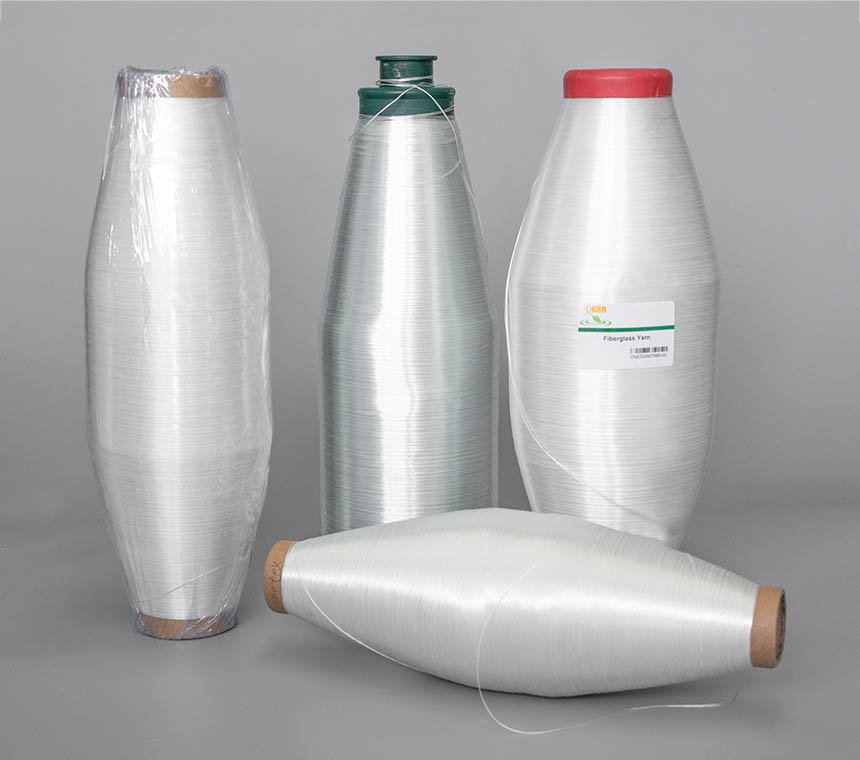

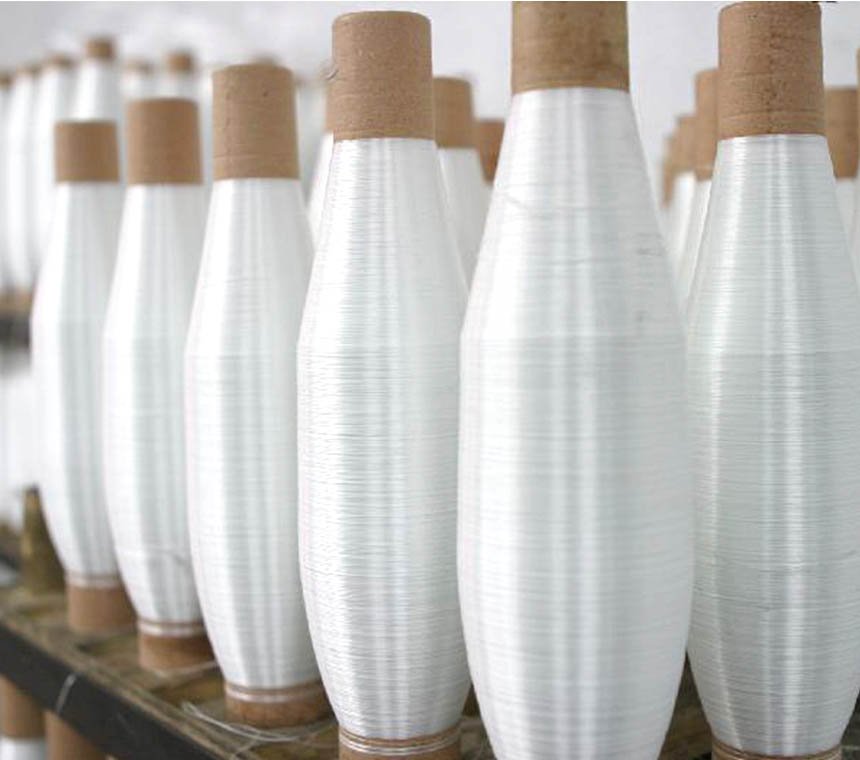

QUARTZ FIBER YARN:

The quartz fiber yarn consists of continuous wetted quartz fiber fibers integrated into a bundle, and then combined according to different twist directions
Yarn made of twisted strands.

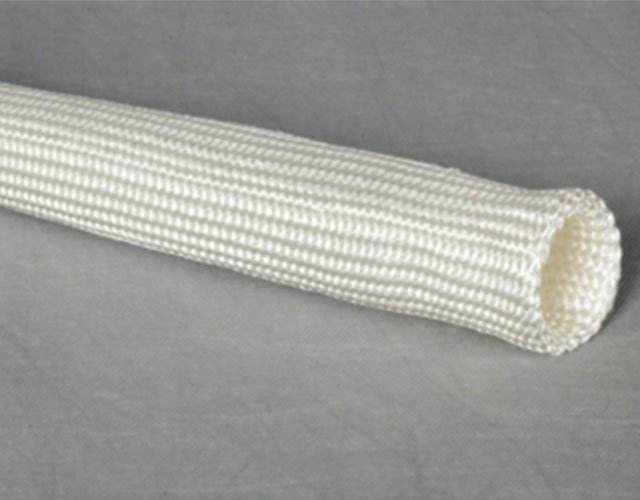

Can be used in a variety of weaving occasions, such as: weaving, ribbon, weaving sleeve, three-dimensional weaving and so on.

Product Code	Linear Density Tex
QT51	51	Standard 70-140 twists/meter. Other specification could be customized.
QT72	72
QT96	96
QT136	136
QT195	195
QT200	200
QT220	220
QT390	390

ULTRA-FINE QUARTZ FIBER YARN:

The diameter of the ultra-fine quartz fiber yarn is only 5μm, and the performance indexes, especially the tensile strength been greatly increased.

Product Code	Linear Density Tex
QTY13	13	Standard 70-140 twists/meter. Other specification could be customized.
QTY24	24
QTY51	51
QTY133	133
QTY190	190
QTY195	195

QUARTZ FIBER UN-TWISTED YARN:

Quartz fiber un-twisted yarn is wetted continuous quartz fiber without twisting yarn.

It has better wettability and can be used directly to make various composite materials, as well as as cotton felt and needling based material for felt.

Product Code	Linear Density Tex
QTD13-40	40	Other specification could be customized.
QTD13-100	100
QTD13-400	400
QTD13-800	800
QTD13-1600	1600

QUARTZ FIBER SEWING THREAD:

High twist quartz fiber yarn coated with high temperature lubricating coating, making thread surface is smooth, flexible,

good folding resistance, can be used directly on industrial sewing machines, can fully replace glass fiber sewing thread, high silicon sewing thread, etc.

It is an ideal suture material for 3D prefabricated parts.

Product Code	Diameter mm
QTS06-20	0.2
QTS06-30	0.3
QTS06-35	0.35
QTS06-45	0.45
Other specification could be customized.

Solution to Markets

Product Packaging & Storage:

Standard packing in carton with pallets. Customized packing is available.
It is recommended to store in a cool and dry environment and keep in a place away from light.
