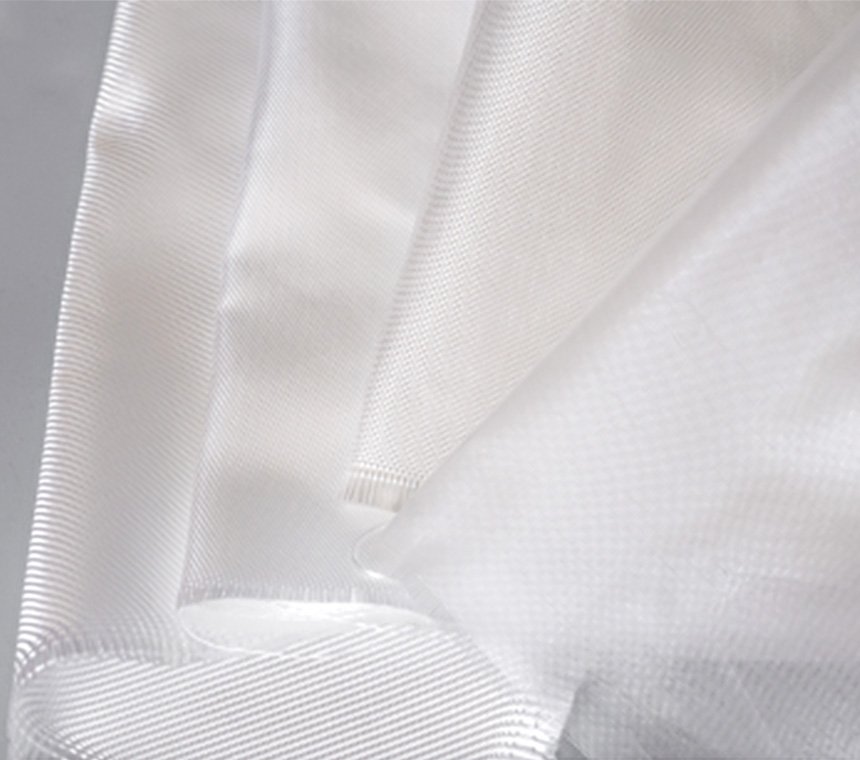

Quartz Fiber Cloth

Product Details

Product Features:

* High wave transparency;

* High ablation resistance;

* Low dielectric;

* Temperature resistance up to 1050 degrees Celsius;

* High corrosion resistance.


◉ As a new type of composite fiber material, quartz fiber cloth has been widely used in aviation and civil markets.

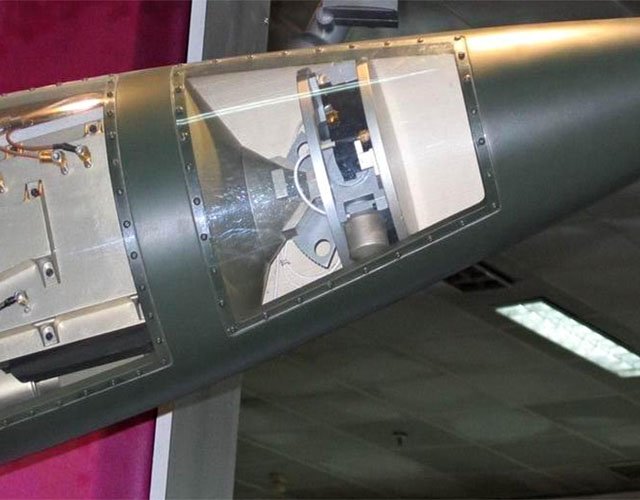

☆ Quartz fiber cloth is used to make antenna cover, which plays the role of insulation, anti-corrosion, lightning protection and anti-interference;
☆ Quartz fiber cloth can be used in the manufacture of rocket vents, aerospace thermal protection devices;
☆ Production of ultra-high temperature equipment protective cover, insulation quilt, insulation cover, etc;
☆ Making noise reduction, insulation and exhaust gas filtration materials for cars and motorcycles;

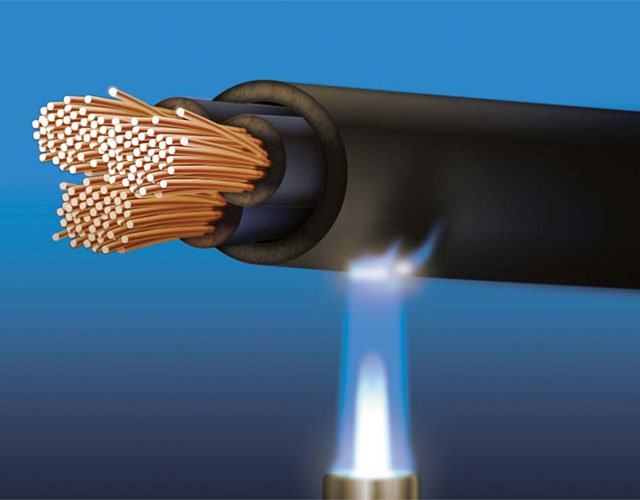

☆ Quartz fiber cloth for high temperature special purpose cable.

Product Parameters

Product CodeUnit Weight
g/㎡
Weaving Type/CoatingDensity
(root/cm)
Thickness
mm
Standard Width
m
QFC100-10100Plain/Twill(16±2)*(16±2)0.11000
QFC108-11108Plain/Twill(20±2)*(20±2)0.111000
QFC108-14165Plain/Twill(16±2)*(16±2)0.141000
QFC108-20200Plain/Twill(12±2)*(10±2)0.21000
QFC108-22216Plain/Twill(16±2)*(14±2)0.221000
QFC108-28280Stain(20±2)*(20±2)0.281000
Special specifications could be customized per requirements.


Solution to Markets

Product Packaging & Storage:

  • Standard pack in pallet, or carton box packed with plastic film wrapped.

  • Customized packing is available.

  • It is recommended to store in a cool and dry environment and keep in a place away from light.
