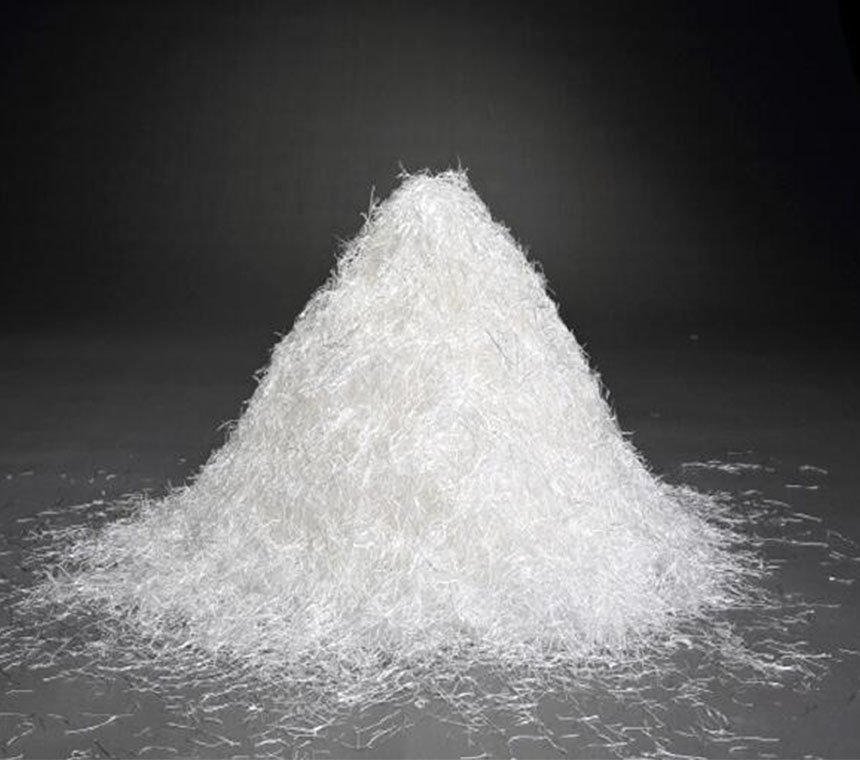

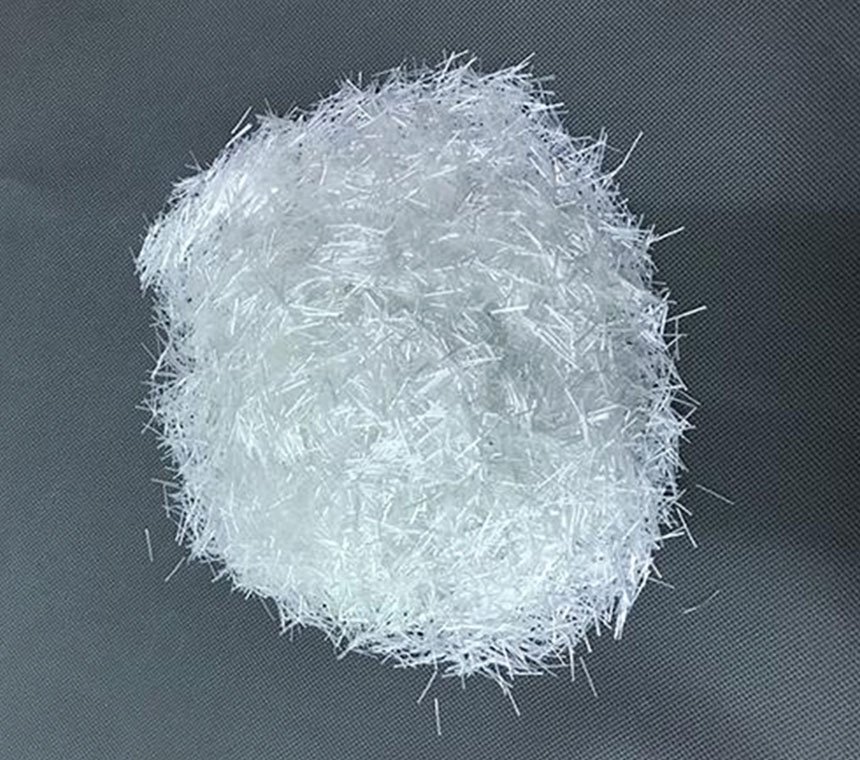

The Chopped Quartz Fiber is made of high purity silica and natural quartz crystals.The diameter is generally a few microns to tens of microns.
High strength retention rate at high temperature, dimensional stability, thermal shock resistance, chemical stability, light transmission and electrical insulation.
☆ Long-term use 1050°C, softening point 1700C.
☆ Low thermal conductivity, high strength, high elastic modulus, high Wave permeability.
☆ It has heat resistance, corrosion resistance and softness.
☆ Non-toxic, harmless, no adverse effects on the environment.
Used to produce high-temperature resistant, heat-insulating products, to reinforce phenolic plastics, to make ablation-resistant bodies, etc.
Used as reinforcing material for automobiles, trains, and ship shells. Used for the production of quartz fiber mats and injection molding of high-temperature resistant engineering plastics, etc.
| Product Code | Filament Diameter (um) | Fiber Length (mm) | Tensile Strength (Mpa) | SiO2 (%) | |||||
| QFYC5 | 5 | 3,6,9,12,20 | 3600 | 99.95 | |||||
| QFYC6 | 6 | 3,6,9,12,20 | 3600 | 99.95 | |||||
| QFYC9 | 9 | 3,6,9,12,20 | 3600 | 99.95 | |||||
| QFYC11 | 11 | 3,6,9,12,20 | 3600 | 99.95 | |||||
| QFYC13 | 13 | 3,6,9,12,20 | 3600 | 99.95 | |||||
