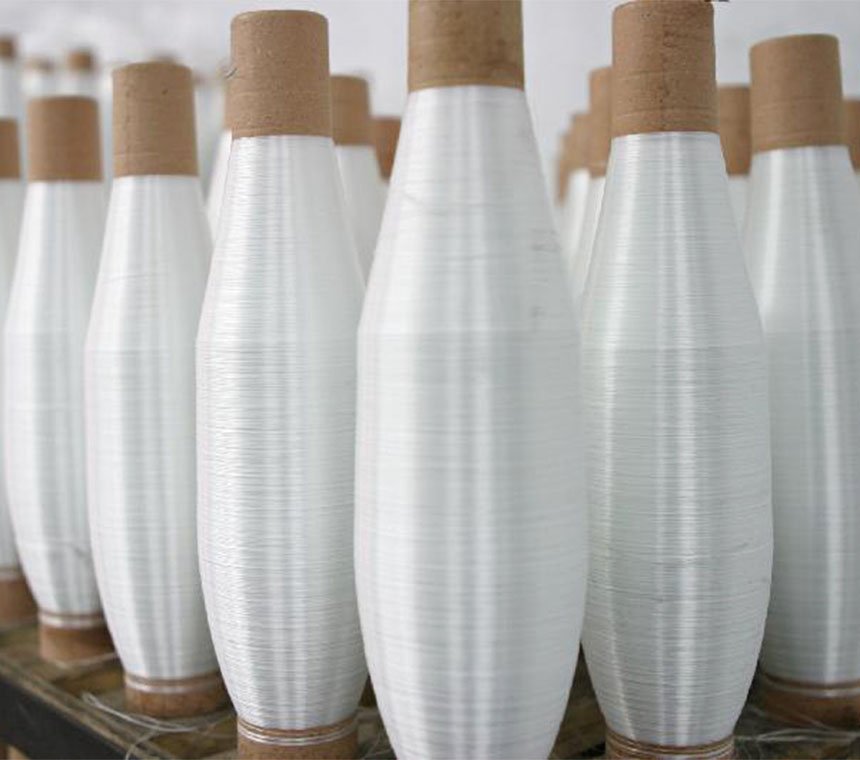

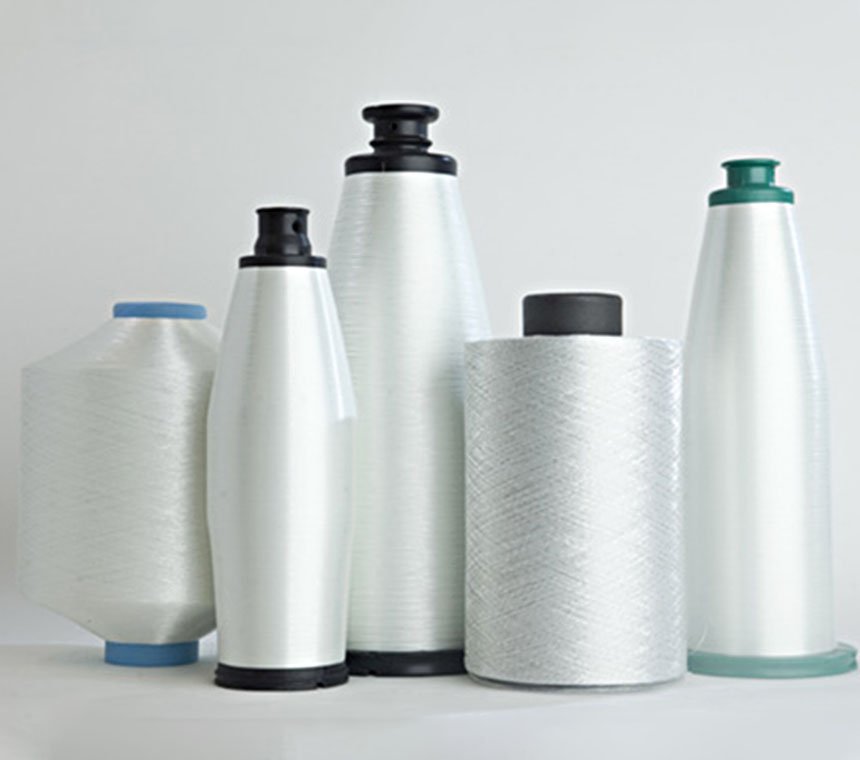

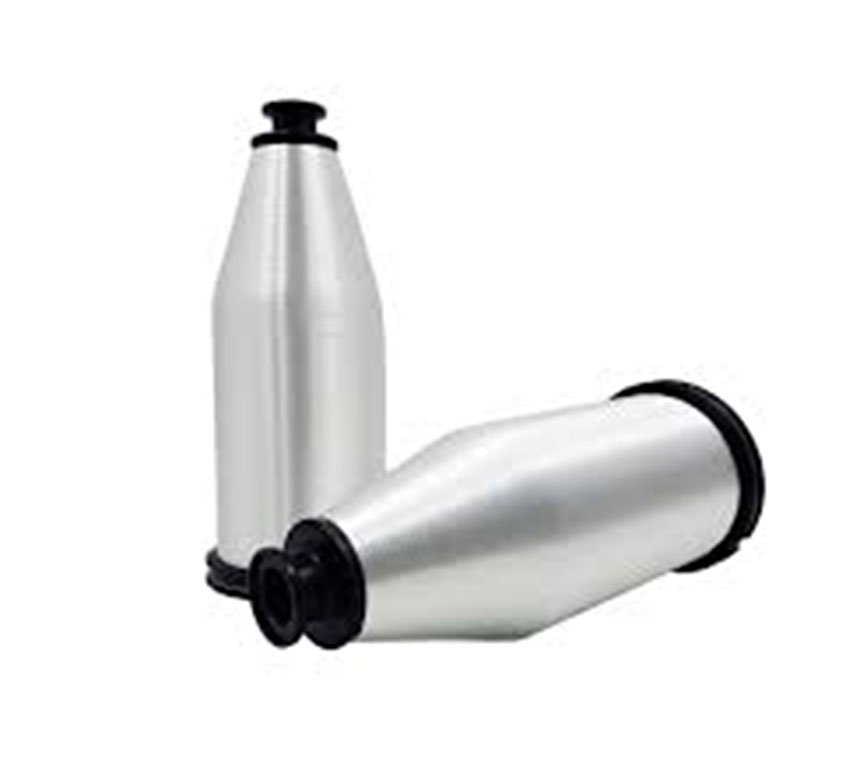

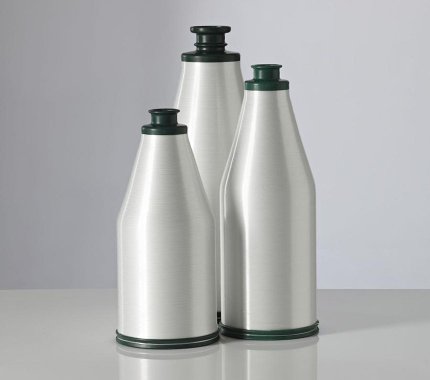

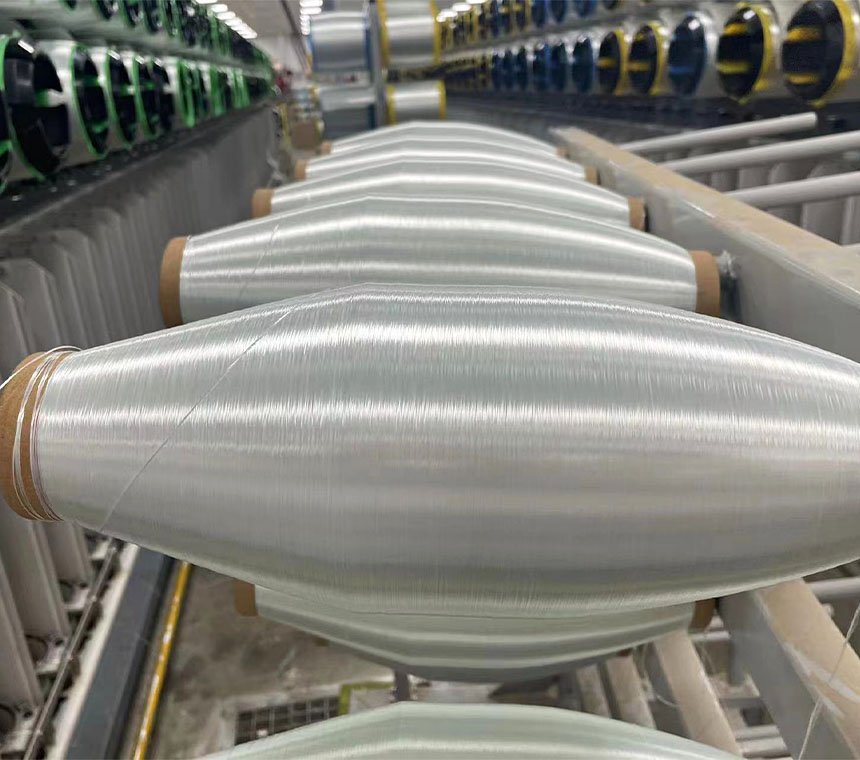

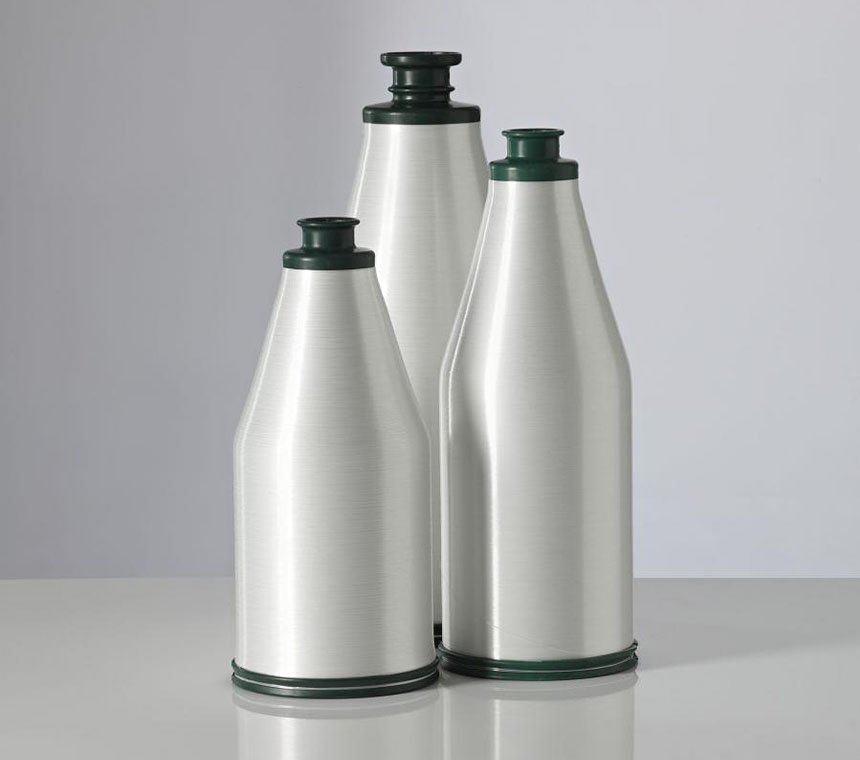

Industrial Fiberglass Yarns

Industrial Fiberglass Yarns

Product Features:

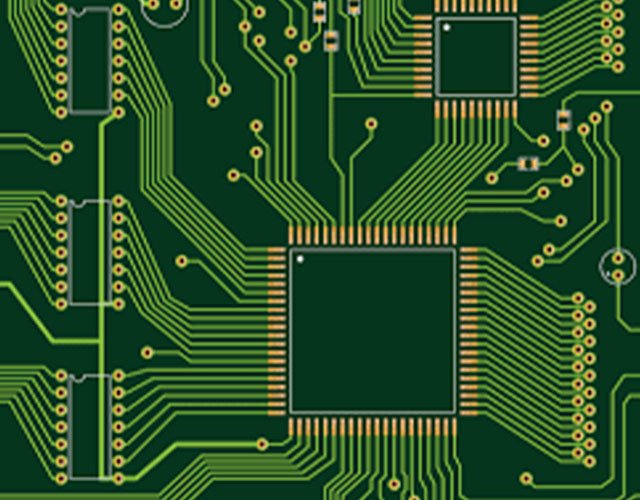

Fiberglass Yarn is the basic material used to produce electrical insulating glass fiber series products, and is an indispensable and irreplaceable high-quality structural material for copper clad laminates and printed circuit boards.

Fiberglass Yarn can be divided into primary twisted yarn and plying twisted yarn according to the production and processing method, and can be divided into starch type, reinforced type and starch silane type according to the type of sizing agent. According to the application, it can be divided into electronic grade spun yarn and industrial grade spun yarn.

The filament diameter of continuous glass fiber yarn is mainly 5-9 microns.

Inquire Now

Collection

Product Details

Product Features:

* Special sizing treatment.

* Good performance, less fuzz.

* Easy to heat clean.

* High tensile strength.

* Excellent textile performance, easy desizing of sizing agent.

* Good compatibility with resins such as epoxy and unsaturated polyester.

* Uniform linear density.

* Good performance in electrical insulation, heat resistance, physical and chemical properties.

Product Parameters

Type of sizing agent	Product Type (Metric)	Product Type (British)	Filament diameter deviation (%)	Liner Density (tex)	Linear density deviation (tex±%)	Moisture (%)	LOI (%)
Y5	EC511Z40	EC D4501/01.0Z	±10	11.2	±2.5	≤0.10	1.10±0.15
Y5, S508	EC633 Z28	ECDE1501/00.7Z	±10	33	±2.5	≤0.10	1.10±0.15
Y5, S508	EC668 Z28	EC DE751/00.7Z	±10	68.7	±2.5	≤0.10	1.10±0.15
Y5, S508, R126	EC675 Z28	ECDE67100.7Z	±10	75	±2.5	≤0.10	1.10±0.15
Y5, S508	EC6136 Z28	EC DE371/00.7Z	±10	136	±2.5	≤0.10	1.10±0.15
Y3, Y5	EC722.5 Z40	EC E2251/01.0Z	±10	22.5	±2.5	≤0.10	1.10±0.15
Y3, Y5	EC 745 Z40	ECE1101/01.0Z	±10	45	±2.5	≤0.10	1.10±0.15
Y1, Y5, R110, S508	EC933 Z28	ECG1501/00.7Z	±10	33	±2.5	≤0.10	1.10±0.15
Y1, Y4, Y102, R, R110, R117, S508	EC968 Z28	ECG751/00.7Z	±10	68.7	±2.5	≤0.10	1.10±0.15
Y1, Y4	EC975 Z28	ECG671/00.7Z	±10	75	±2.5	≤0.10	1.10±0.15
Y1, R	EC9110 Z28	ECG451/00.7Z	±10	110	±2.5	≤0.10	1.10±0.15
Y1, R, R117	EC9136 Z28	ECG371/00.7Z	±10	136	±2.5	≤0.10	1.10±0.15
Y1, R, R117	EC9204 Z20	EC G251/00.5Z	±10	204	±2.5	≤0.10	1.10±0.15
Y1, R, R117	EC 11136 Z20	ECH371/00.5Z	±10	136	±2.5	≤0.10	1.10±0.15
Y1, R, R117	EC 11204 Z20	EC H251/00.5Z	±10	204	±2.5	≤0.10	1.10±0.15
Y1, R, R117	EC 13272 Z20	ECK18100.6Z	±10	272	±2.5	≤0.10	1.10±0.15

Solution to Markets

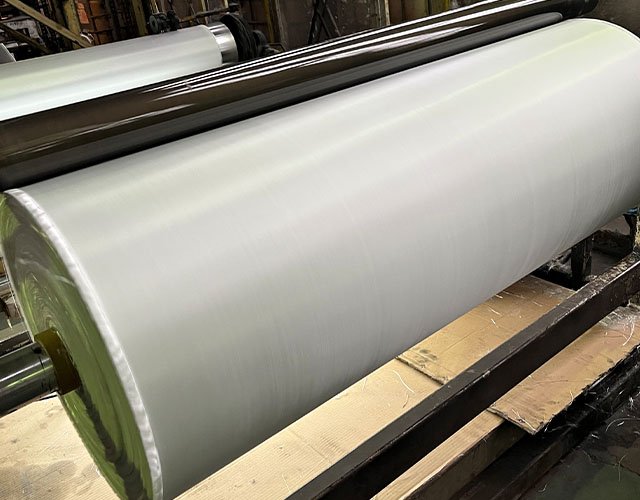

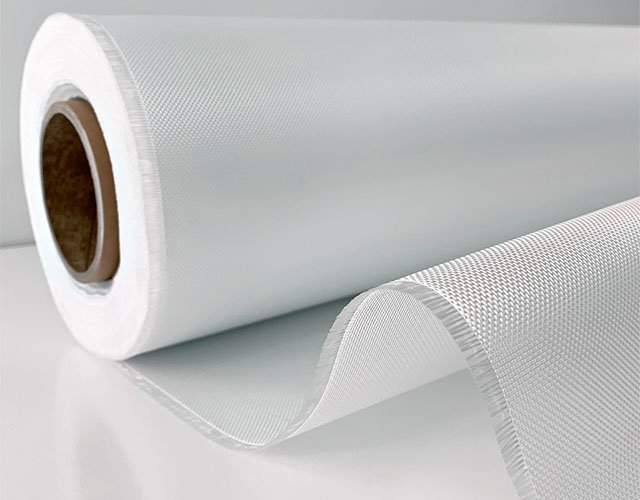

It is suitable for the production of electronic base fabrics, cords, casings, grinding wheel cloths, sunshade cloths, window screens, filter materials and other products.
