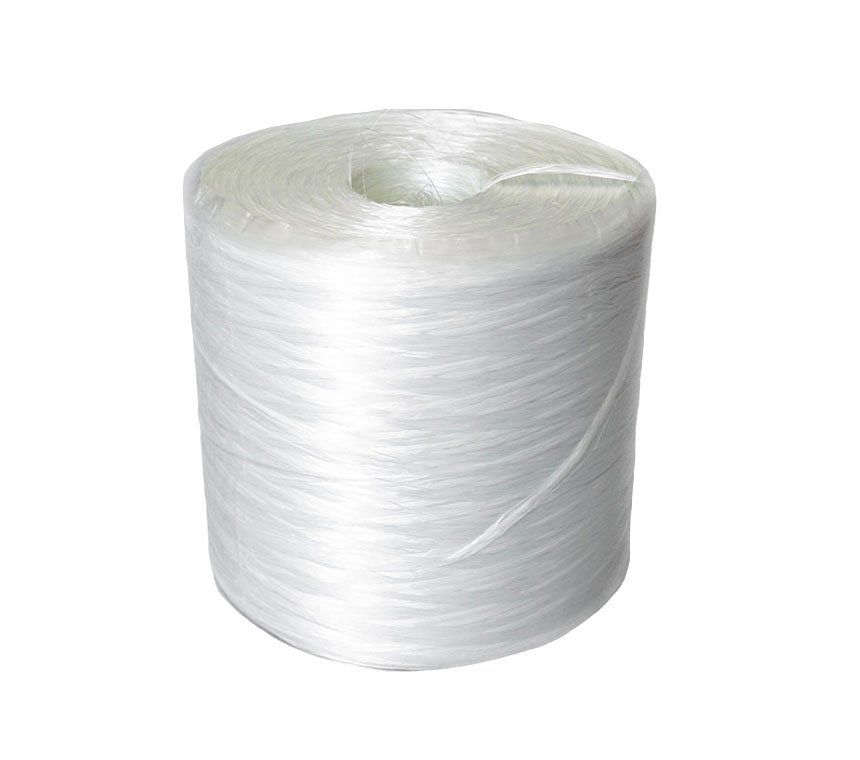

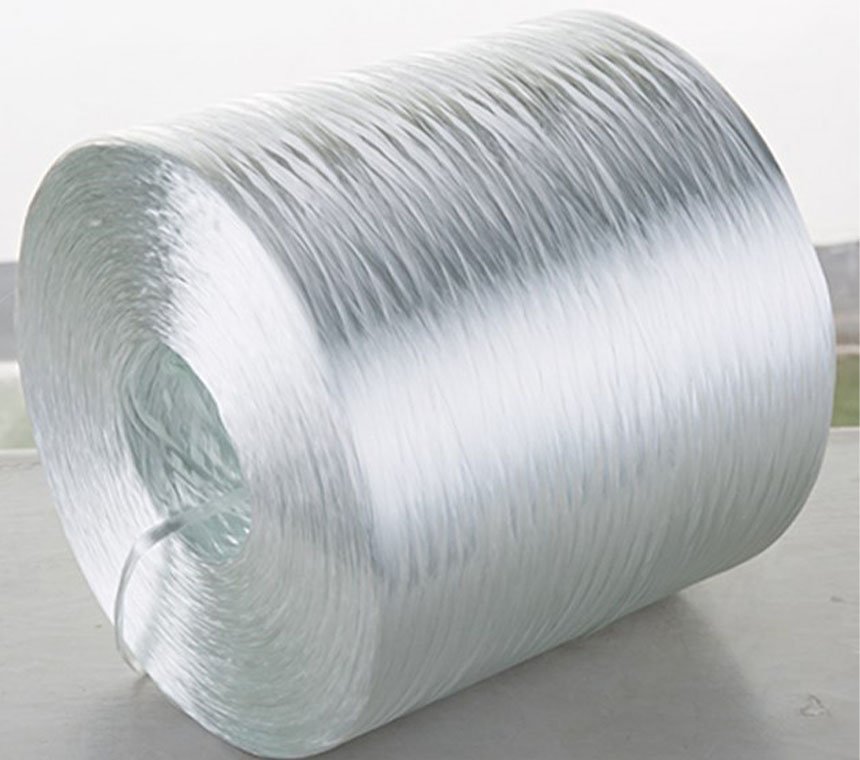

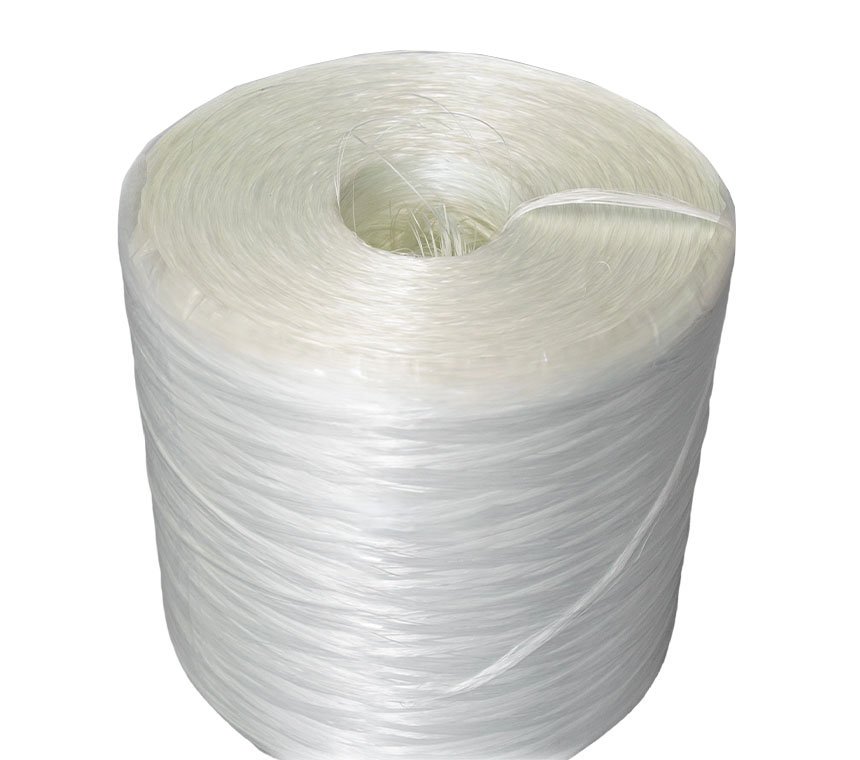

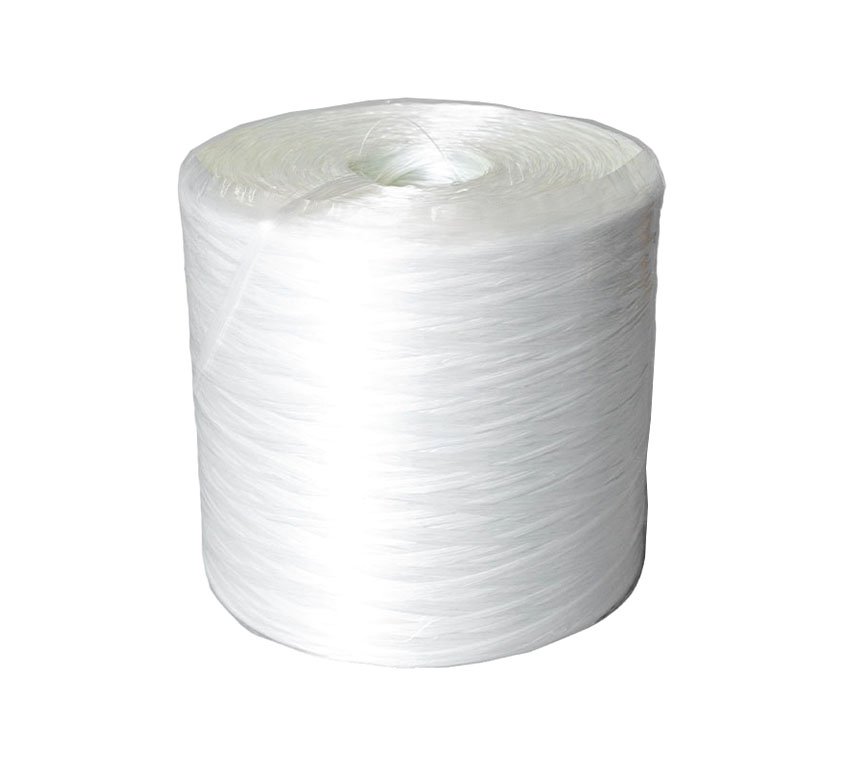

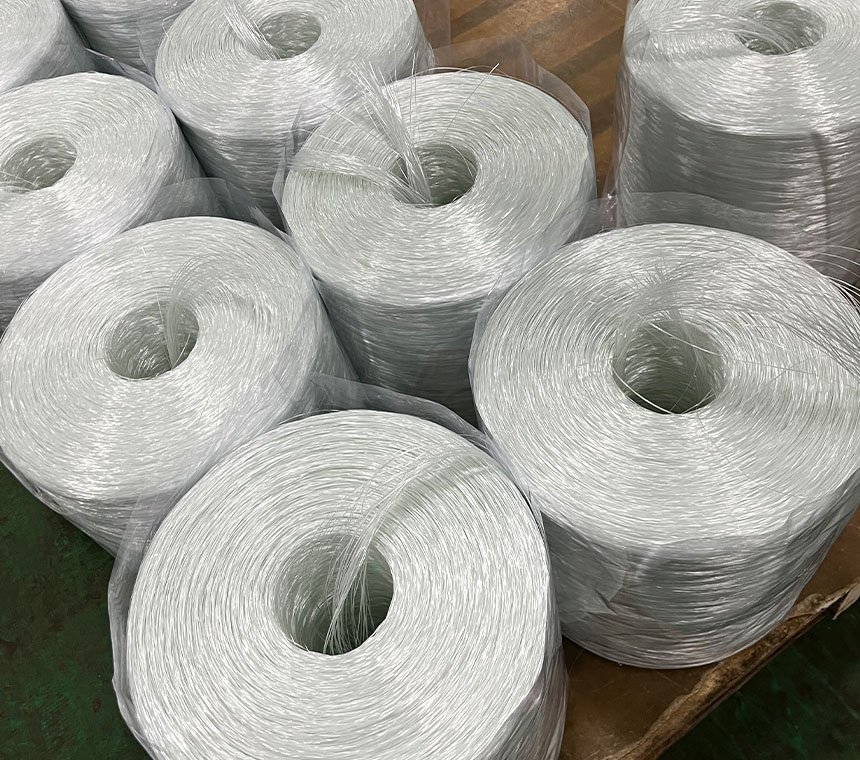

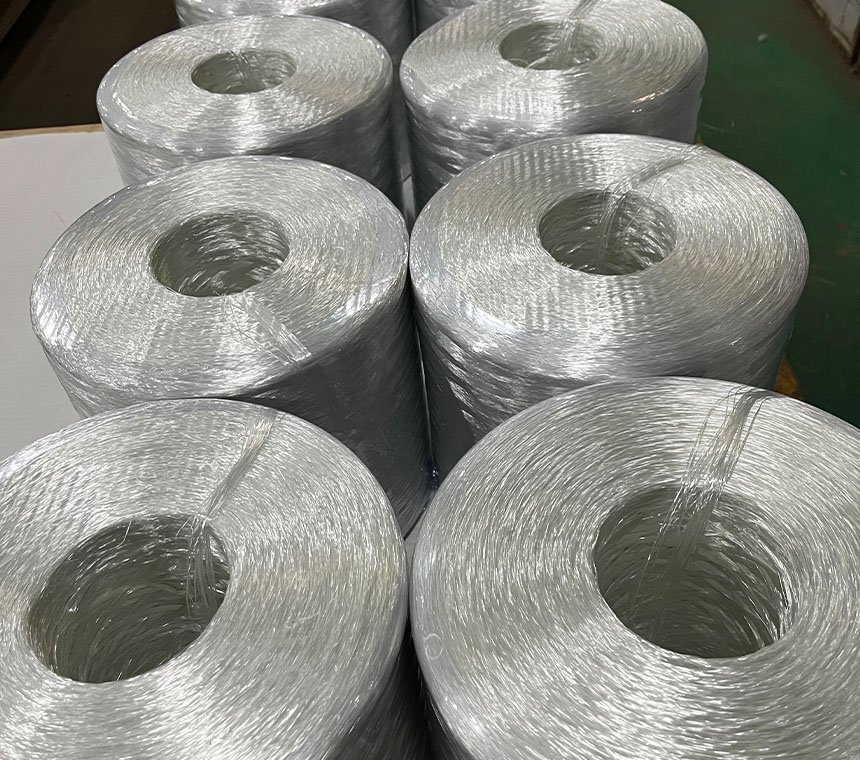

Assembled Panel Rovings are coated with a silane-based sizing and compatible with UP and acrylic resins.They can fast wet-out in resin and deliver excellent dispersion after chopping.
Product Properties:
◎ Excellent choppability
◎ Outstanding dispersion under low tension
◎ Low levels of static and fuzz
◎ Consistent and uniform laydown
◎ Excellent wet-out, similarity between resin and glassfiber refractive indexes
◎ Excellent mechanical properties of the finished product
| Product | Linear density Tolerance (%) | MOI(%) | Sise Content (%) | Stiffness(mm) | Filament diameter (um) |
| ECR 2400tex | ± 4 | ≤ 0.10 | 0.6±0.15 | 125±20 | 12 |
| ECR 3200tex | ± 4 | ≤ 0.10 | 0.6±0.15 | 125±20 | 12 |
| ECR 4800tex | ± 4 | ≤ 0.10 | 0.6±0.15 | 125±20 | 12 |
Application:

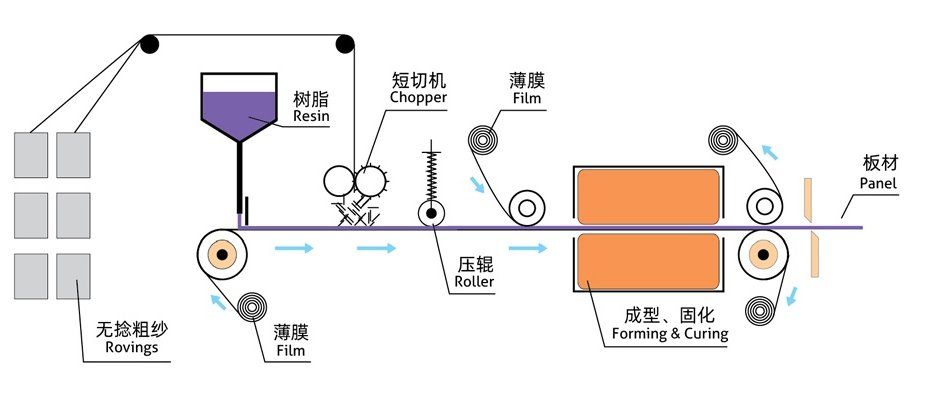

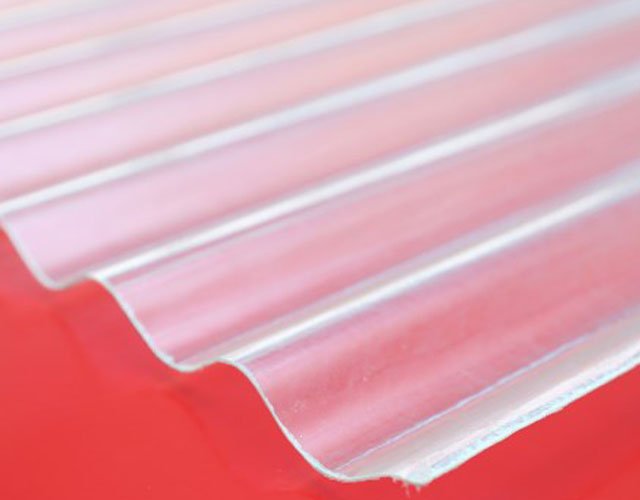

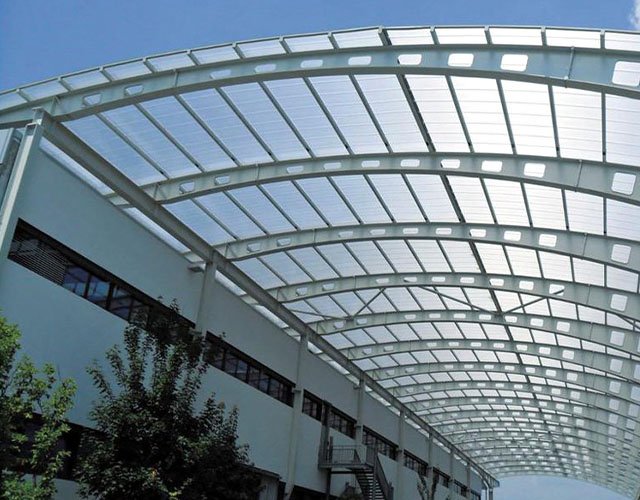

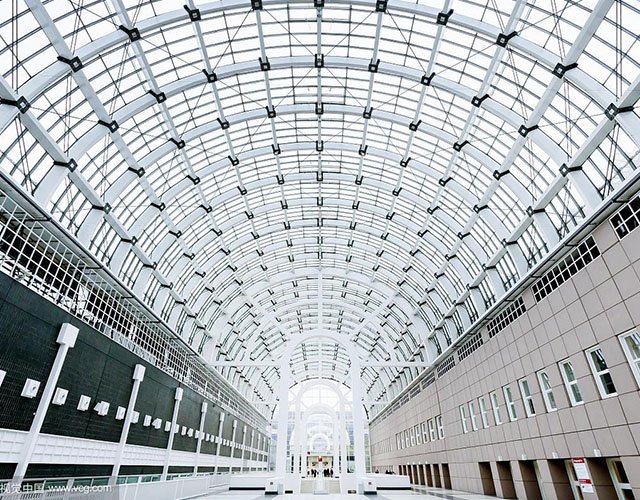

It is used to produce transparent and translucent panels and corrugated panels, which are widely used in construction, building materials, automobiles, agriculture and animal husbandry and other fields.
