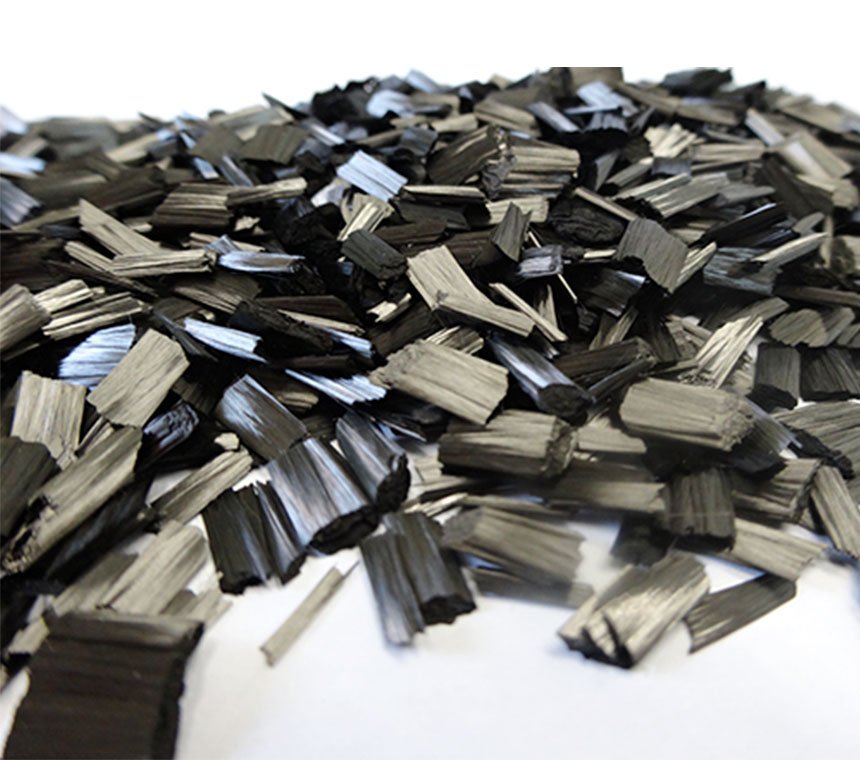

Chopped carbon fiber is cutted from carbon fiber yarn, its basic properties mainly depend on its raw materials.
Product Features：
* High hardness, high strength, light weight
* High temperature resistance, friction resistance, corrosion resistance
* Good dispertion and mixing performance
* Improve the tensile strength and toughness of the product, improve the impact resistance of the product.
◉ Used to reinforce injection and compression molding compounds with various matrices such as thermoset/thermoplastic resins, rubber, paper and cement. End uses of the molded parts include brakes/clutches for automotive applications and housing parts for electrical applications.
| Product code | Sizing type | Length mm | Tensile strength GPa | Tensile modulus GPa | Filament Diameter μm | Denstity g/cm³ | |||||
| CCF300 | Water | 3 | 3.73 | 230 | 7 | 1.8 | |||||
| CCF600 | Water | 6 | 3.73 | 230 | 7 | 1.8 | |||||
| CCEP300 | Epoxy | 3 | 3.73 | 230 | 7 | 1.8 | |||||
| CCEP600 | Epoxy | 6 | 3.73 | 230 | 7 | 1.8 | |||||
| CCPU600 | PU | 6 | 3.73 | 230 | 7 | 1.8 | |||||
| CCPA600 | PA | 6 | 3.73 | 230 | 7 | 1.8 | |||||
| Length could be customized. | |||||||||||
Product Packaging & Storage:
Carton packages. Available for customization.
Avoid exposure to the sun and do not store in extreme temperatures
