Glassfiber Multiaxial Fabric

Glassfiber Multiaxial Fabric

Product Features:

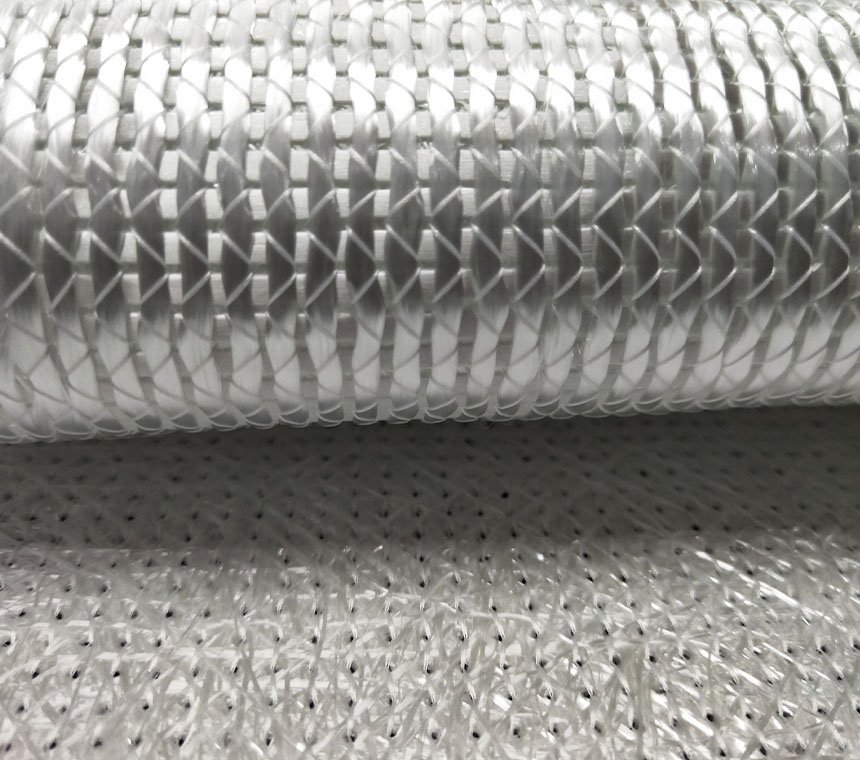

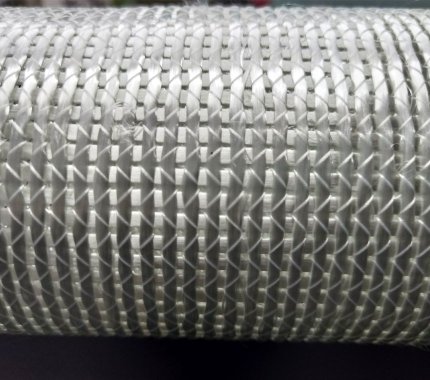

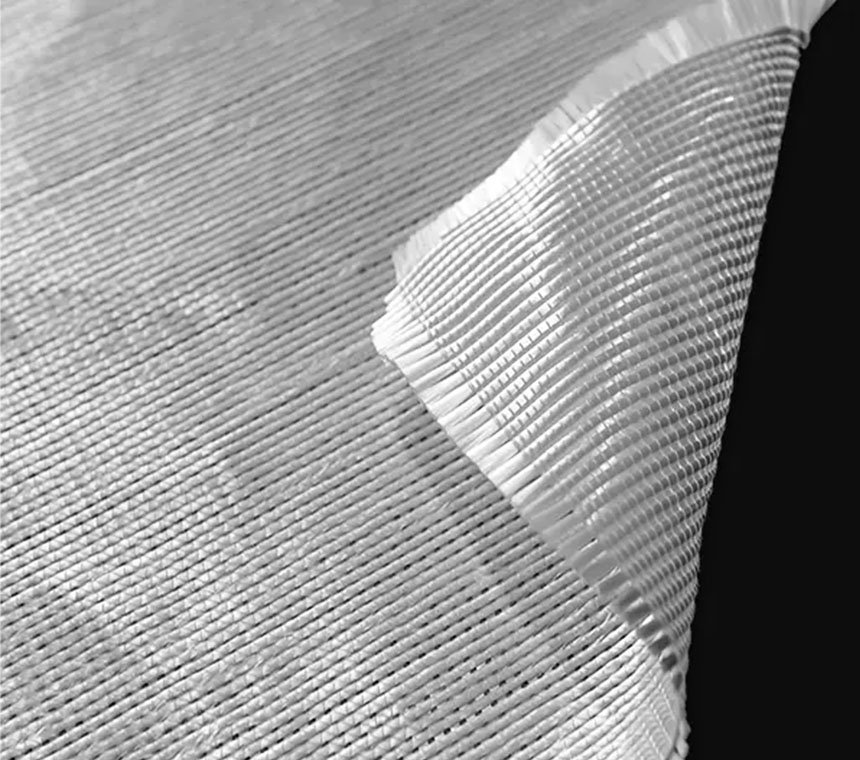

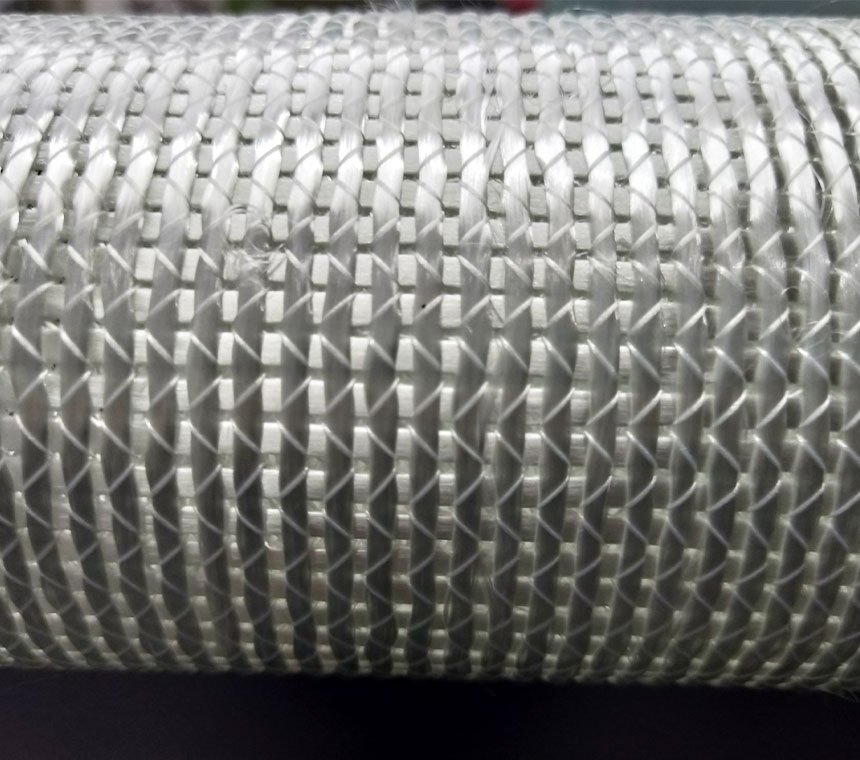

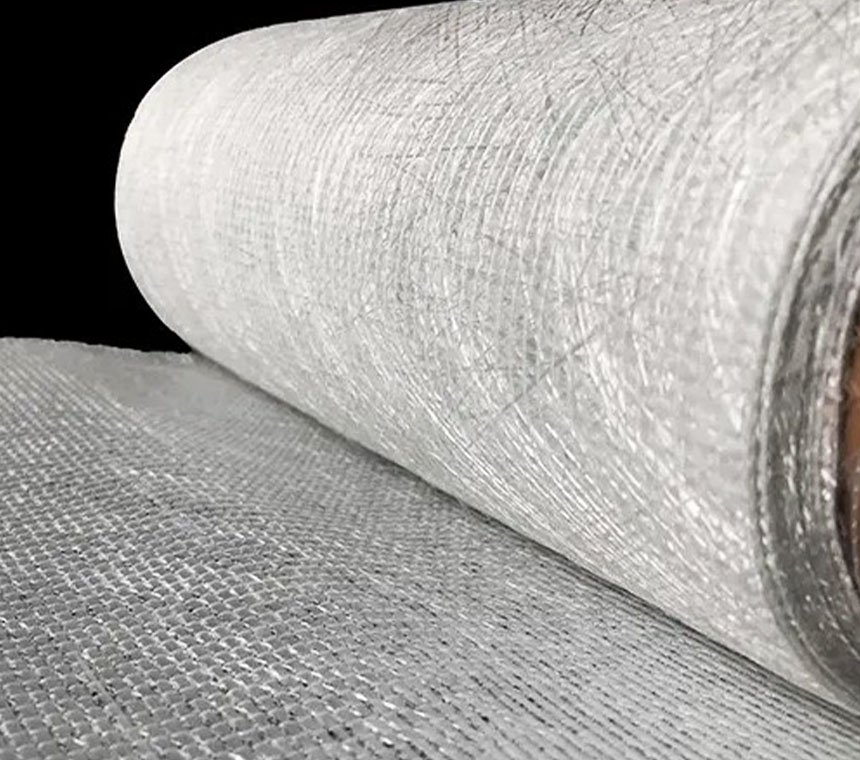

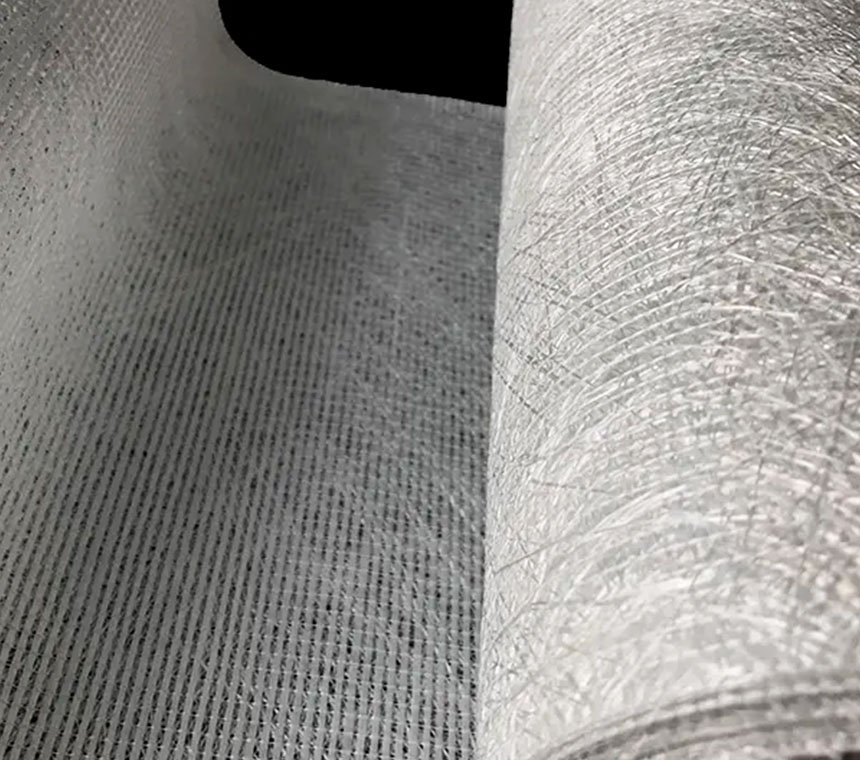

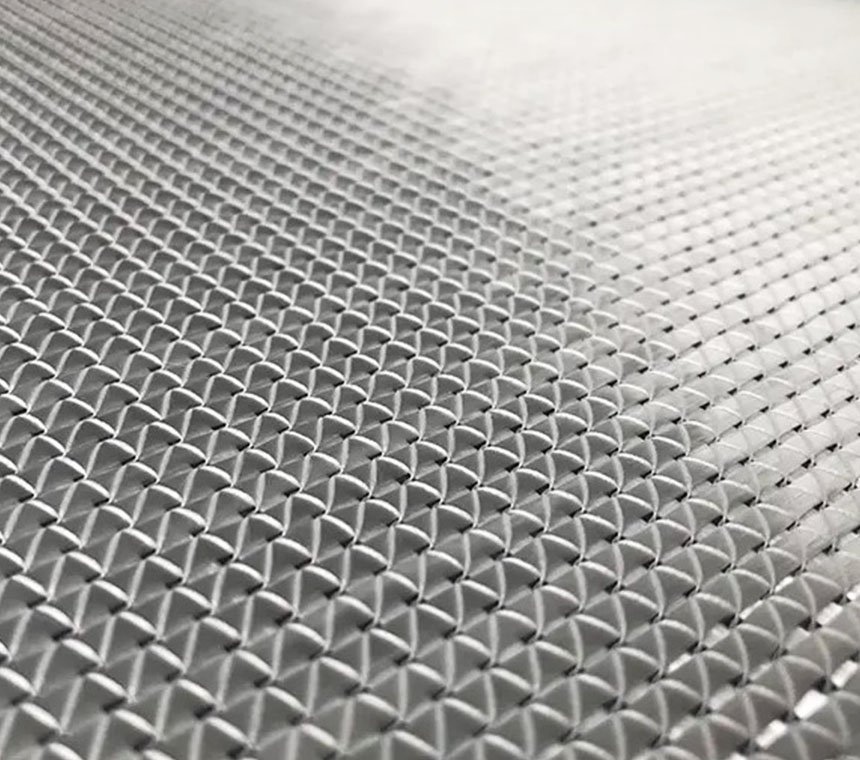

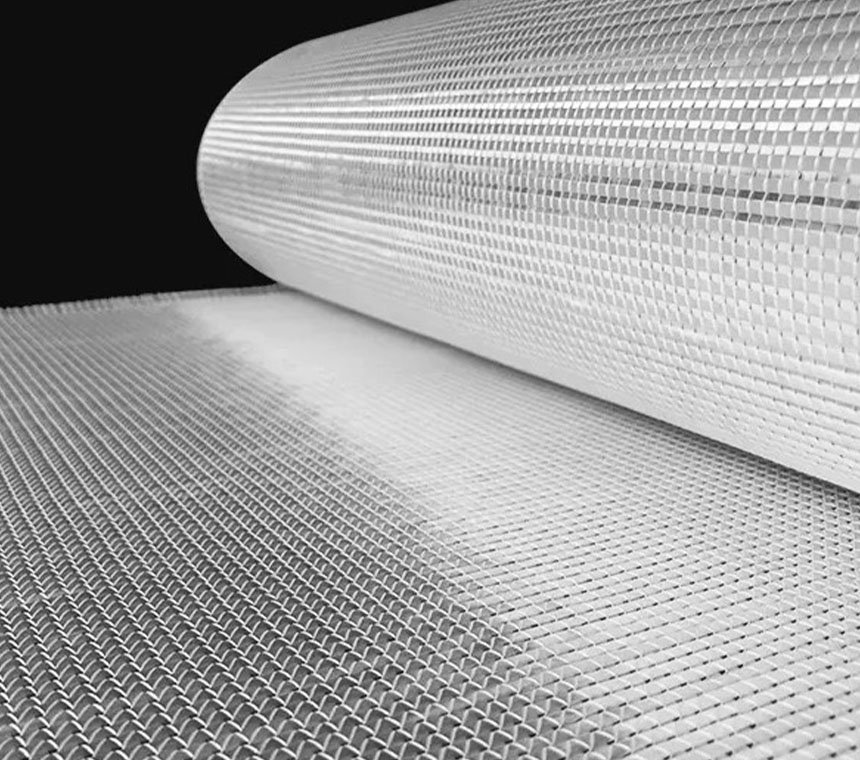

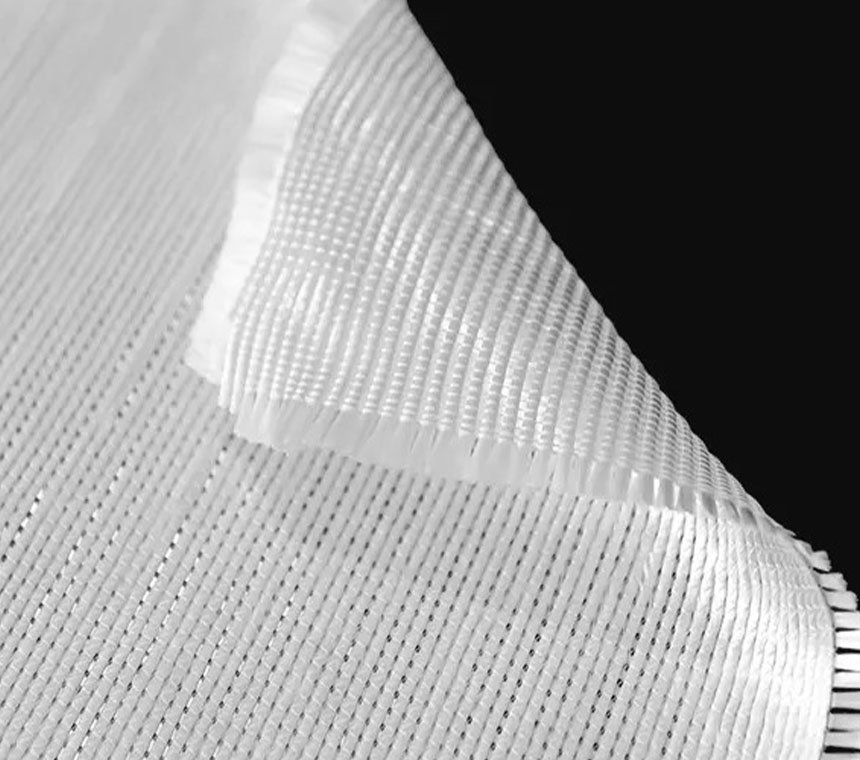

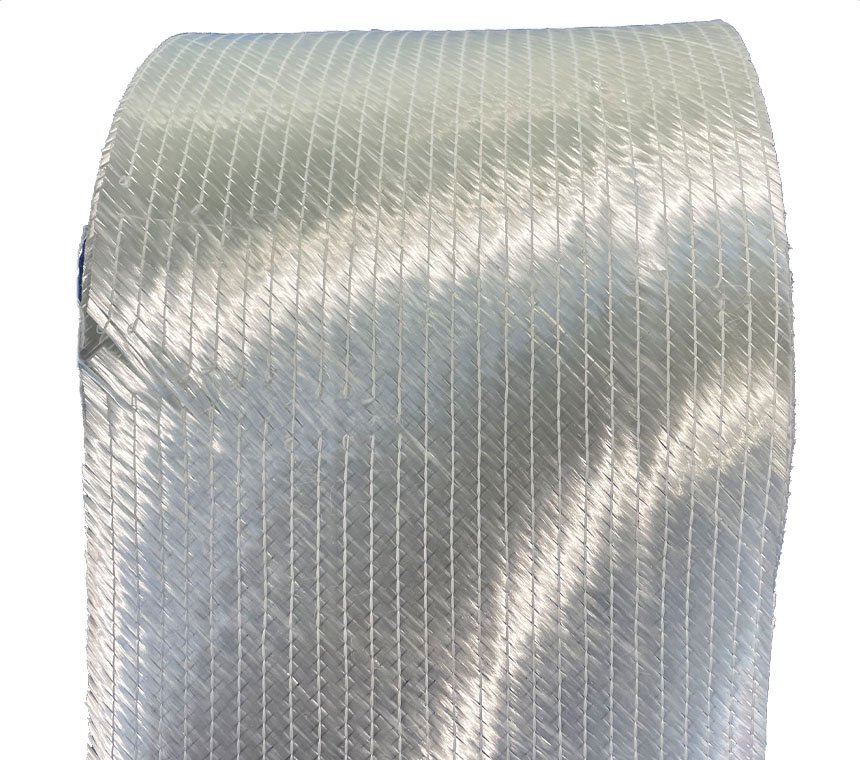

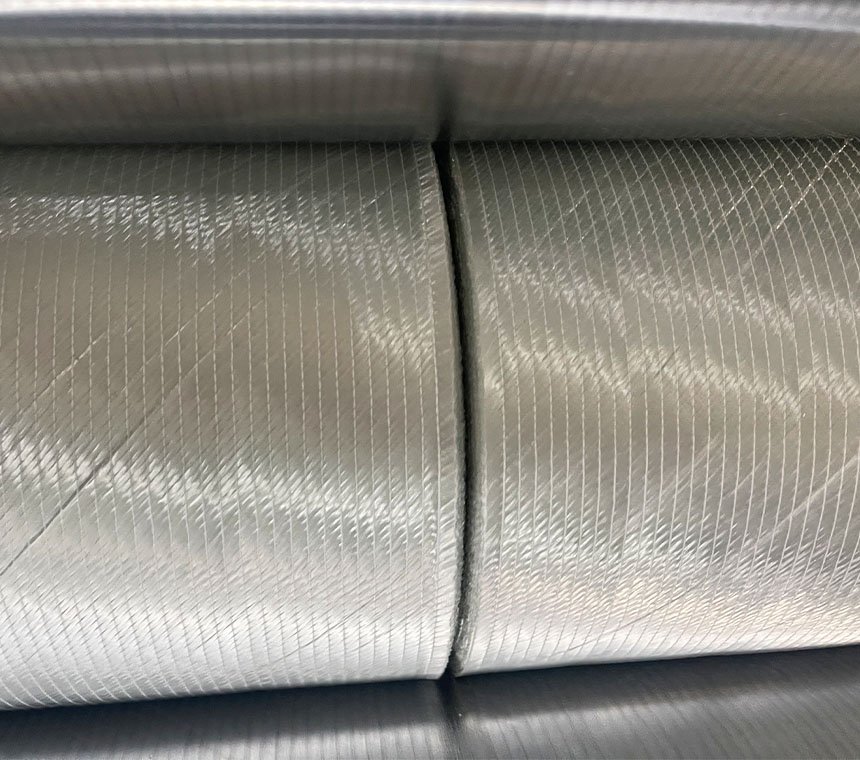

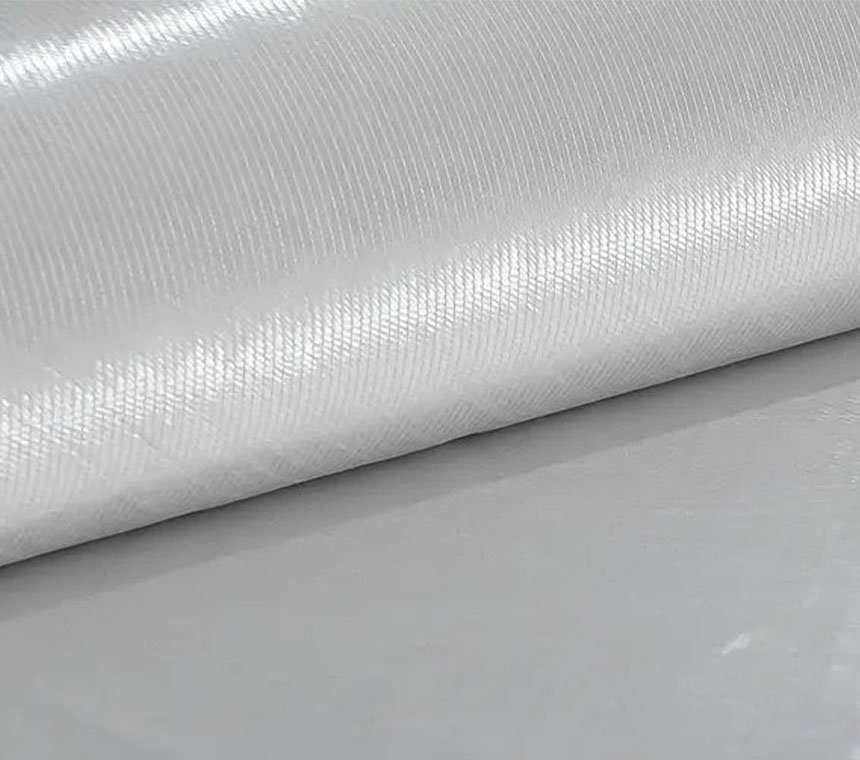

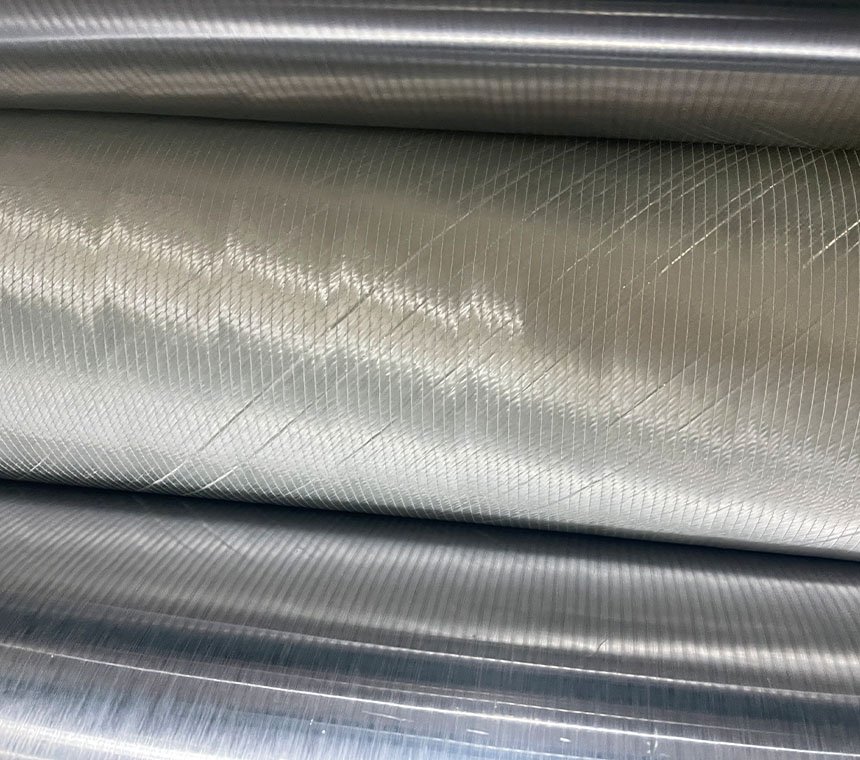

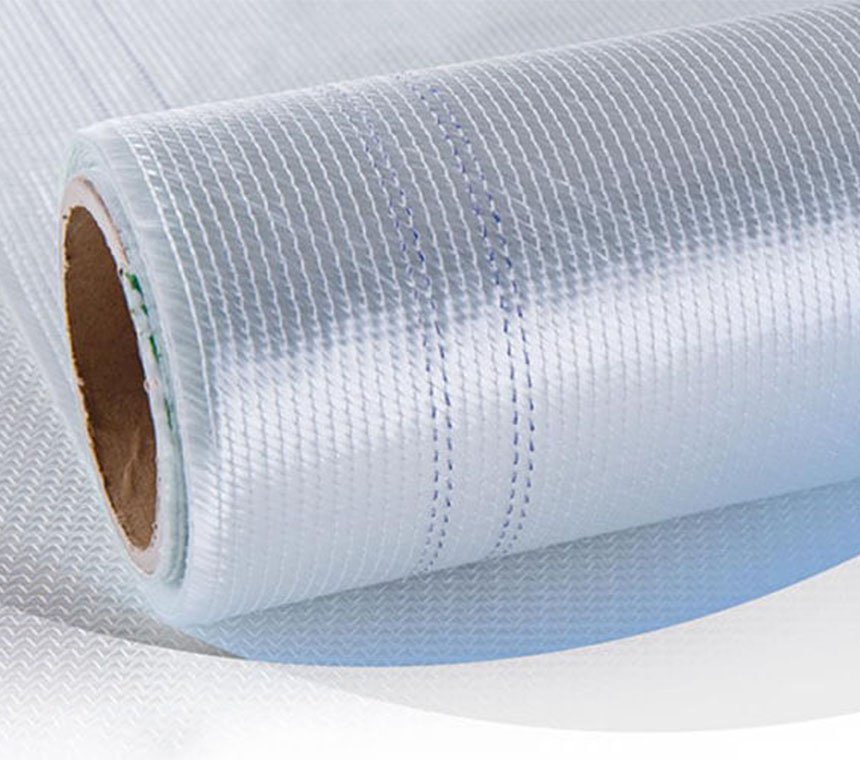

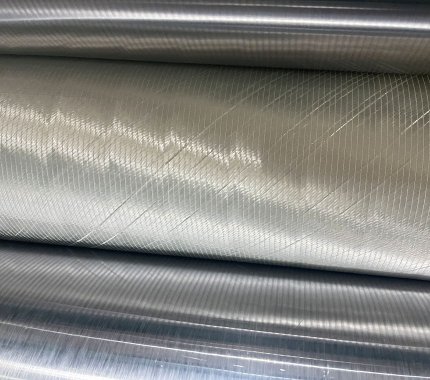

Fiberglass multiaxial fabrics is a non-crimped, multi-axial and multi-layered reinforcement material. The number of layers, axial direction, grammage, and specific fiber weight of each layer vary depending on the application itself. Each layer is stitched with polyester yarn. Such fabrics can be manufactured by using different combinations of directions (0°, 90°, +45°, -45°), or by stitching with non-woven materials such as chopped fibers or thin mats.

Inquire Now

Collection

Product Details

Product Properties:

1.Increased strength, reduced product weight and better surface finish；
2.Orientated unidirectional layers are structurally more efficient；
3.Quicker to wet-out than woven fabrics;
4.Available in very heavy weights allowing faster deposition rates；
5.Binderless CSM can be added to further cut down on lay-up time and increase speed of wet-out；

Product Parameters

Product No.	Overall Density (g/m2)	0° Roving Density (g/m2)	+45° Roving Density (g/m2)	90° Roving Density (g/m2)	-45°Roving Density (g/m2)	Polyester Yarn Density (g/m2)
QX-E600	601.4	144.7	150.4	150	150.4	6
QX-E800	823.8	216	200.5	200.8	200.5	6
QX-E1000	954	216	248	236	248	6
QX-E1150	1178.7	294	300.6	283.5	300.6	6
QX-E1200	1201.2	294	300.6	3o0	300.6	7
QX-E1600	1620	434	308	564	308	7

Solution to Markets

Product Applications:

It is used for such products include wind energy, marine/shipbuilding, fiberglass moulds, pultruded profiles, automotive, aerospace, defense, and more.
